Máy vát ống US25CA - Boiler Tube Beveling Machine

Nhà sản xuất:Protem

Mã sản phẩm:

Xuất xứ:Pháp

Giá:Liên hệ(Đã bao gồm VAT)

Catalogue sản phẩm

Catalog US25CA

Thông số của sản phẩm
Standard Capacity

:

25mm - 90mm (1“-3.543“)
Extended Capacity

:

12,7mm - 120mm (0.5“ - 4.724“)
Cutting head gear drive

:

150 rpm offload speed 70 rpm nominal speed. Approximate rotation speed according to air pressure and air flw
Specifi shapes & angles

:

Facing 90°, bevel 30°, 37°30, 45°, counterbore, J-bevel, Other on request
Feed stroke

:

35 mm
Expansion

:

10 mm (0.394”)
Pneumatic drive

:

730 W, 6 bar (87 psi), 1400 l/min (49 cfm)
Clamping

:

Automatic

Mô tả sản phẩm

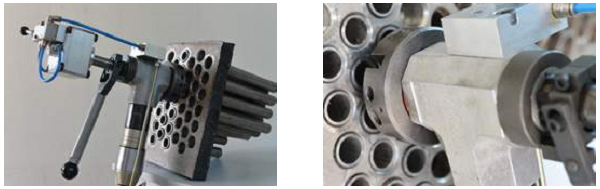

The US25CA is a powerful. durable. reliable and versatile portable tube and pipe beveling & facing machine.

The PROTEM US25CA will perform repeatable high quality weld end preparations on virtually all materials including mild, chrome, stainless steel, duplex, super duplex, copper-nickel alloy steel, inconel, P91, aluminium, copper, exotic alloys, etc...

The US25CA features an integrated automatic clamping device.

Pneumatically driven machines have to be used with a lubricating fiter. Recommended option: regulation valve

ORDER NR.	DESCRIPTION
US25CA-1000	Pipe Beveling Machine US25 pneumatically driven with automatic clamping for Ø 1“-3.543“ OD (25mm-90mm)
US25CA-1002	Pipe Beveling Machine US25, pneumatically driven with automatic clamping for Ø 1“-2.362“ OD (25mm-60mm)
